Automatic stretch wrapping machine with rotating ring Genesis HS

  Description:

  A complete range of automatic ring wrapping machines to wrap pallet loads with stretch film designed for use in the beverage sector and in applications that require high production capacities. The special feature of Genesis HS series wrapping machines is the exclusive system which, during ring rotation, generates electrical energy that powers the motorised pre-stretch units. This technical and internationally patented solution can operate without sliding electrical contacts, minimising maintenance costs since the problems of contact wear and sparks are fwully eliminated, and can be used in dusty and humid environments.

Thanks to the design of the support structure, Genesis HS can be easily included in existent pallet conveyor lines. Due to these features, Genesis HS series wrapping machines have a wide range of application in various merchandise sectors.

Types of wrapping machines:

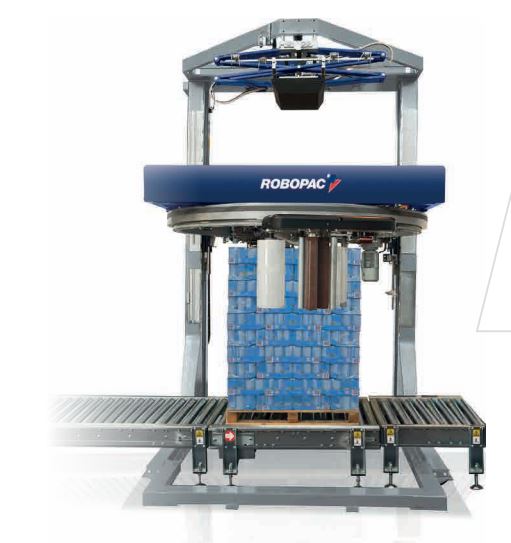

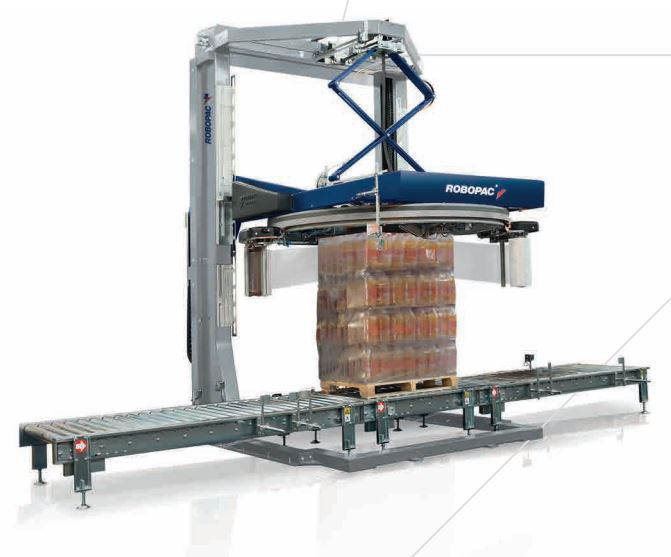

GENESIS HS 50	GENESIS HS 50/2

  Key features:

	GENESIS HS 50	GENESIS HS 50/2
Min-max pallet dimensions (mm)	800x1200 - 1100x1300	400x600 - 1000x1200
Max pallet height (mm)	500 - 2000; 1000 - 2000 T.I*
Output capacity (paleti/h)	100; 85 T.I.*	130; 110 T.I.*
Pre-stretch carriage	ASCSP; USCSP/2
Power supply voltage (V)	380 -400 -415 ± 5%
Power supply frequency (Hz)	50
Air pressure (bar)	6
Air consumption (Nl/min)	250; 350 T.I.
Reel height (mm)	500
Max reel diameter (mm)	250
Film thickness workable (µm)	17 - 30
TOP Film thickness (µm)	40 - 100

* T.I. - With top sheet applicator.

  Options:

Pre-stretch carriages:

ASCSP	USCSP/2

• ASCSP - Pre-stretch carriage with on-board motorisation with patented electricity generation system. Possibility to pre-stretch the stretch film at fixed values up to 300% .
• USCSP/2 - Pre-stretch carriage with double independent DC motorisation on-board, with electric current generator and ultra-capacitors. Variable pre-stretching with 150%-400% range.

Clamps cut and seal the film at the end of the wrapping:

Which occurs without contact with the product	Wrapping film is inserted into the winding itself

  Others:

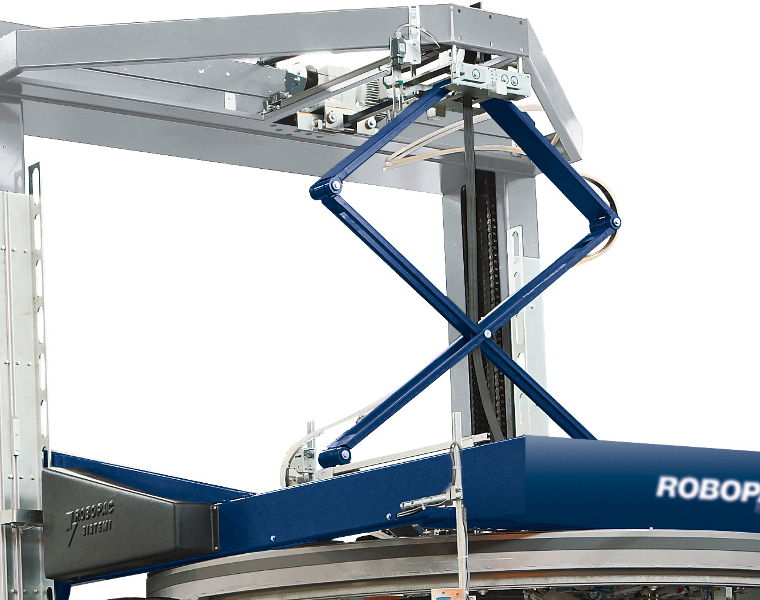

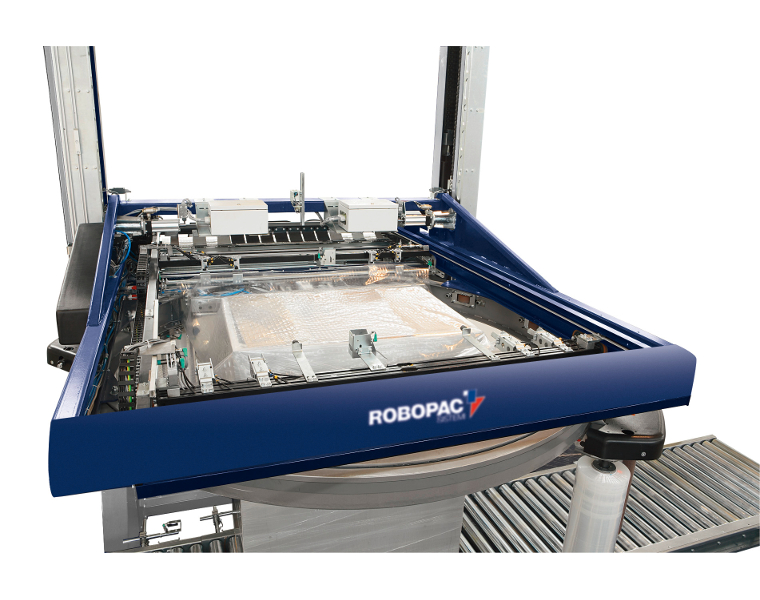

Pressure platen	Pallet lifter	Top cover

Roping	Corner applicator	Arc reel-change

Video:

Genesis HS 50:

Genesis HS 50/2:
